Application Model
SONY E-mount | A7、A7M2(α7II)、A7M3(α7III)、A7M4(α7IV)、
A7R(α7R)、A7RM2(α7RII)、A7RM3(α7RIII)、A7RM4(α7RIV)、A7RM5(α7RV)、
A7S(α7S)、A7SM2(α7SII)、A7SM3(α7SIII)、
A7C(α7c)、A7C2(α7cII)、A7CR(α7cR)、
A1、A9、A9I、A9III、ZV-E1 ,etc. |
FUJI X-mount | X-A1、X-A10、X-A2、X-A3、X-A5、X-A7; X-M1; X-H1、X-H2、X-H2S; X-T1、X-T10、X-T100、X-T2、X-T20、X-T200、X-T3、X-T30、X-T30II、X-T4、X-T5; X-Pro1、X-Pro2、X-Pro3; X-E1、X-E2、X-E2S、X-E3、X-E4; X-S10、X-S20 ,etc. |
Nikon Z-mount | Z5、Z6、Z7、Z6II、Z7II、Z9、Z8、Zf
|
Canon RF-mount | EOS R、RP、R5、R5C、R6、R6 Mark II、R3、R8 ,etc.
|
L-mount | Leica:SL、SL2、SL2-S、SL3 ,etc.
|
GFX-mount | GFX50S、GFX50R、GFX50SII;
|
EF-mount | EOS-1D X Mark III、EOS 5D Mark IV、EOS 6D Mark II... ,etc. |
F-mount | Df、D5、D6、D850、D810A、D810、D780、D750、D610... ,etc. |

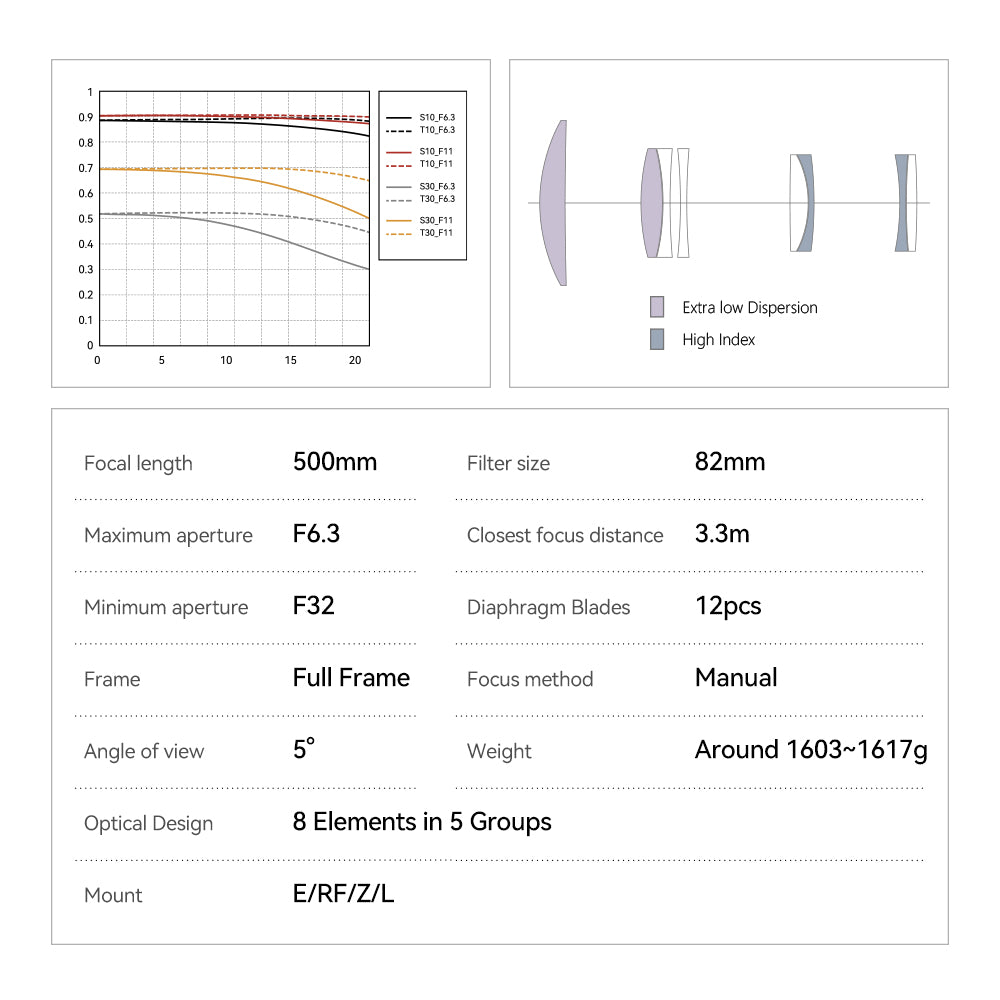

MTF & Optical Design
Specification
Focal length | 500mm | Maximum aperture | F6.3 |
Closest focus distance | 3.3m | Minimum aperture | F32 |
Frame | Full Frame | Diaphragm Blades | 12pcs |
Filter size | 82mm | Optical Design | 8 Elements in 5 Groups |
Angle of view | 5° | Focus method | Manual |
Weight | Around 1564~1617g | Mount | E / X / Z / RF / L / GFX / EF / F |
Video
New Explorations with New Series
TTArtisan 500mm F6.3 telephoto lens adopts an optical structure of 8 elements in 5 groups, including 2 extra-low dispersion glass and 2 high index glass.
Photographing the Moon
Cropped at zoom
“Get closer” to the world
The telephoto lens is ideal for photographing distant subjects that you cannot get closer to. Such as airplanes, sports and wildlife, etc.
For Humanist Photography
This 500mm f6.3 lens is a good choice for humanist photography, which allows you to maintain a large and comfortable distance from the subject.
Simplify Composition
The telephoto lens is great for creating strong and simple images without distractions.
Whether you are a telephoto photography enthusiast or a beginner, you can enjoy the fun of telephoto photography.
Comes with tripod mount ring
TTArtisan 500mm F6.3 comes with a tripod mount ring to keep the camera and lens balanced on the tripod.
warn
Do not hold the tripod mount ring directlyto prevent the lens from falling due to loose screws.
※This is the wrong holding posture
Vignetting Test
The lens is designed for full frame, and the actual image field is larger than full frame and can almost cover medium format.
Slight vignetting at F6.3 on E-mount
No vignetting at F22 on E-mount
F6.3 on GFX-mount,No vignetting at the closest focusing distance
F6.3 on GFX-mount,No vignetting at infinity
