TTArtisan
Light Meter II
Light Meter II
Product boxes are randomly selected and shipped.
Light Meter II
Shutter Speed: 23 stops
Aperture: Clicked
Power Source: CR1632
Size: 40*35*16mm
Non-slip: √
Light Meter I
Shutter Speed: 12 stops
Aperture: Declicked
Power Source: CR2032
Size: 40*40*15mm
Non-slip: ×
Specification
Material:Aircraft aluminum | Measuring Angle:Approximately 45° |
Power Source:CR1632 | Shutter Speed: Ambient 1sec.- 1/2000 |
Battery Life: Around 60h | Measuring Mode:Average Metering |
Shutter Speed
The f-stop in khaki is replaced by a white dot in the dial.
1 | 1/1.25 | 1/2 | 1/3 | 1/4 | 1/6 | 1/8 | 1/12 |
1/15 | 1/23 | 1/30 | 1/45 | 1/60 | 1/90 | 1/125 | 1/180 |
1/250 | 1/375 | 1/500 | 1/750 | 1/100 | 1/1500 | 1/2000 |
IRIS
The f-stop in khaki is replaced by a white dot in the dial.
F1.0 | F1.2 | F1.4 | F1.7 | F2.0 | F2.4 | F2.8 | F3.5 |
F4.0 | F5.0 | F5.6 | F7.1 | F8.0 | F10 | F11 | F13 |
F16 | F19 | F22 |
ISO
25 | 50 | 100 | 200 | 400 | 800 | 1600 | 3200 | 6400 |
The current exposure status is displayed by the indicator light. The left and right dials can modify the parameters, which resemble the Manual mode of camera.
Overexposure within one step
Overexposure
Accurate Exposure
Underexposure within one step
Underexposure
Not Available
Shutter speed increased from 12 to 23 stops, making exposure more accurate.
Upgrade the metering module to make the metering more accurate.
Continuous Metering for 60h.
No operation for 10 seconds:
The indicator light will automatically turn off and the it can be activated by touching the dial and metering button.
No operation for 60 seconds:
The light meter will turn on the sleep mode, which can be activated by clicking the metering button.
(without battery)

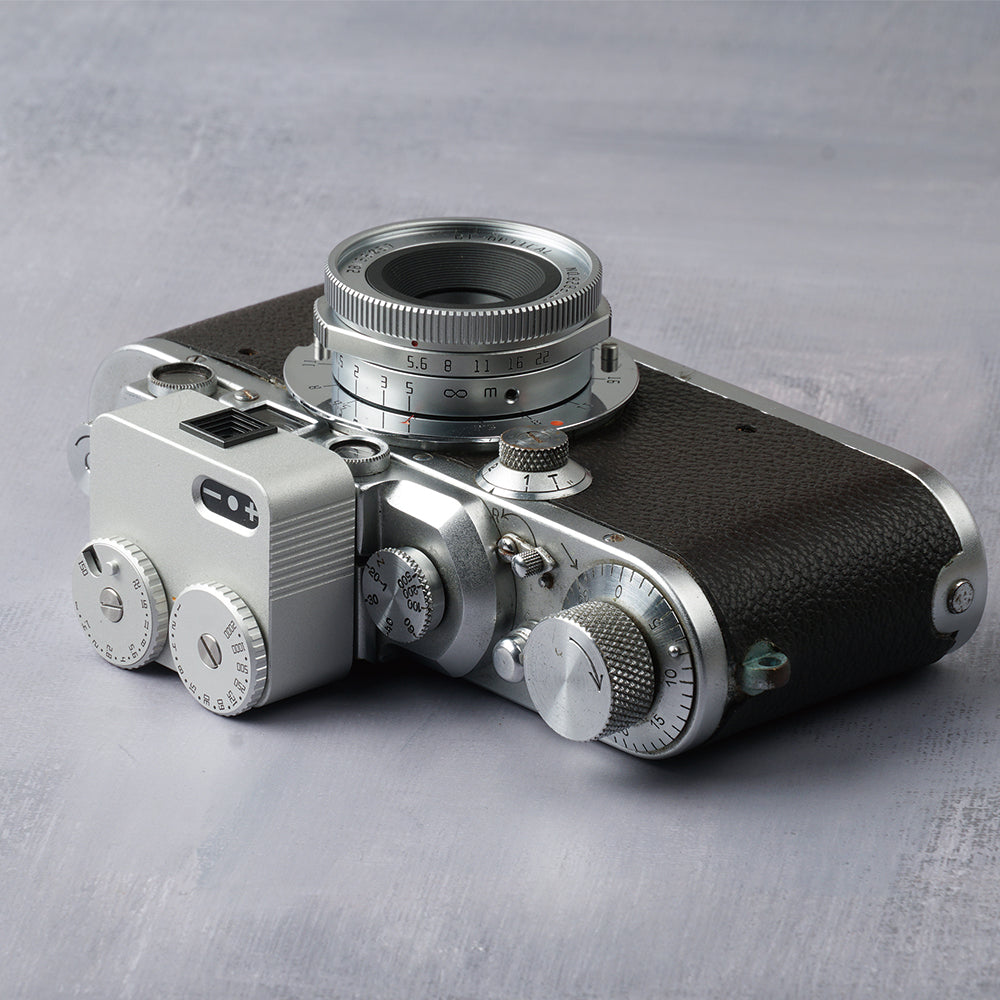

The installation position can be adjusted freely, there are three choices, please see the picture for details.
Left
Middle
Right
