M-E 6bit adapter II
M-E 6bit adapter II
Not available for 100mm f2.8 bubble bokeh, 250mm f5.6 Reflex and 75mm f1.5 Swirly Bokeh M42 mount lens

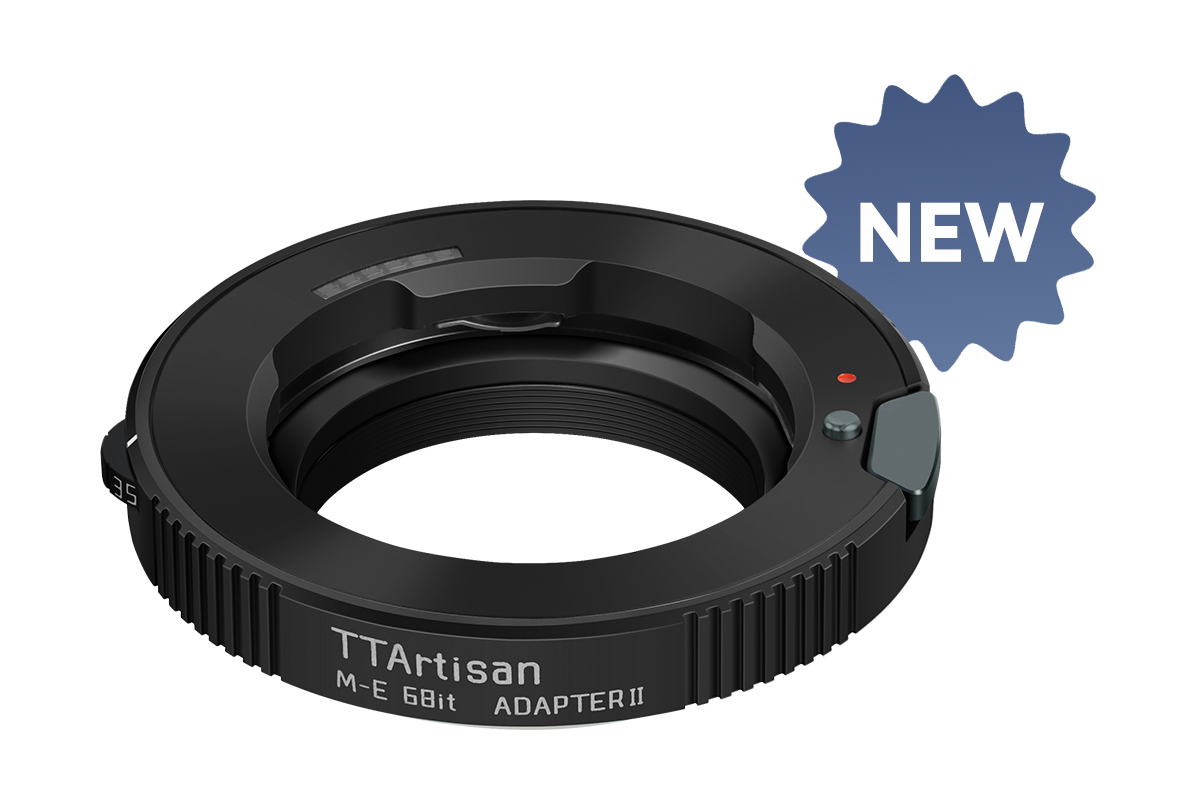

M-E 6Bit Adapter II
Upgrade
Reset Button:
Reset Button:
Focal Length Dial:
Focal Length Dial:
Firmware Update:
Firmware Update:
Applicable Models

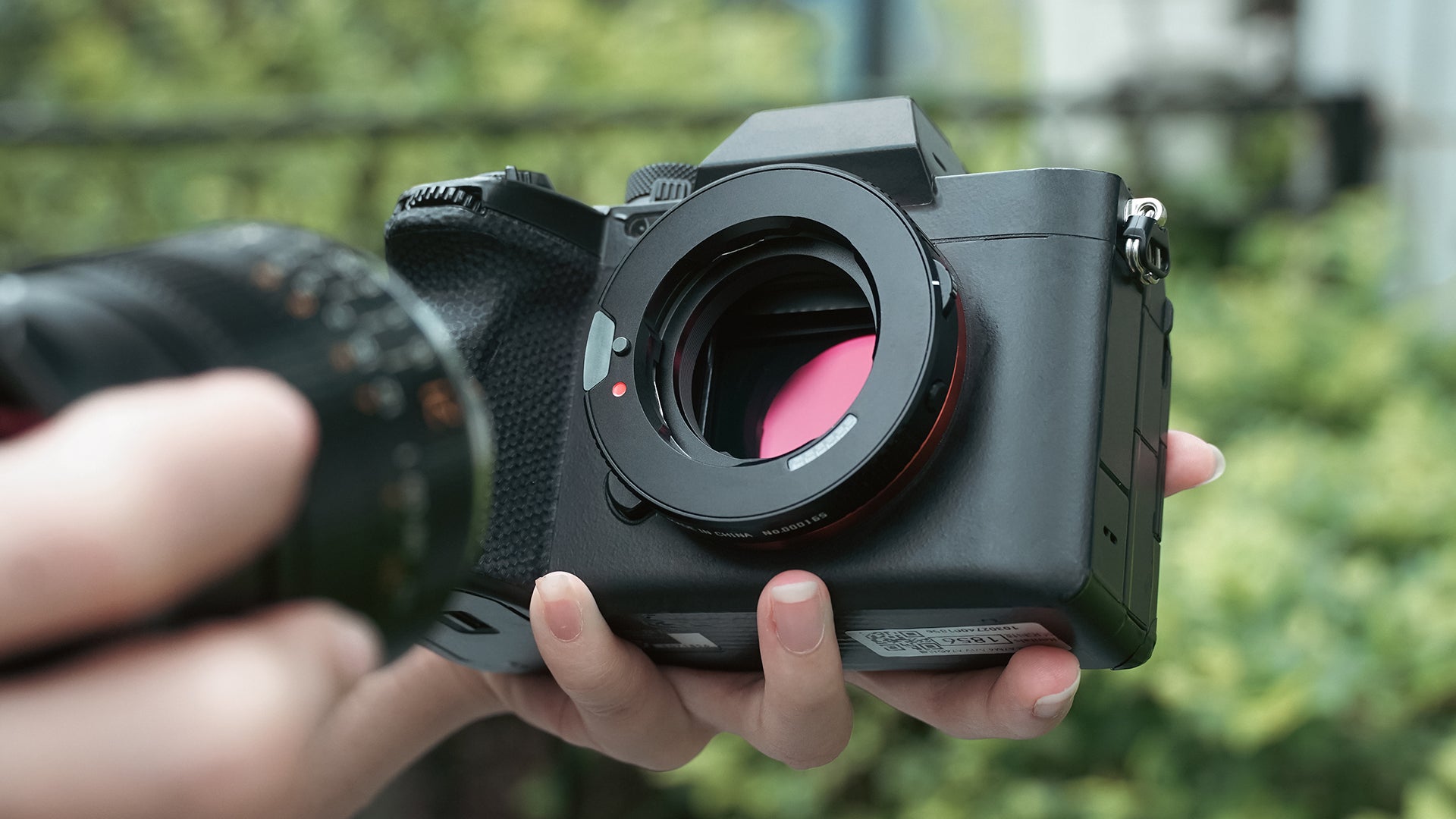

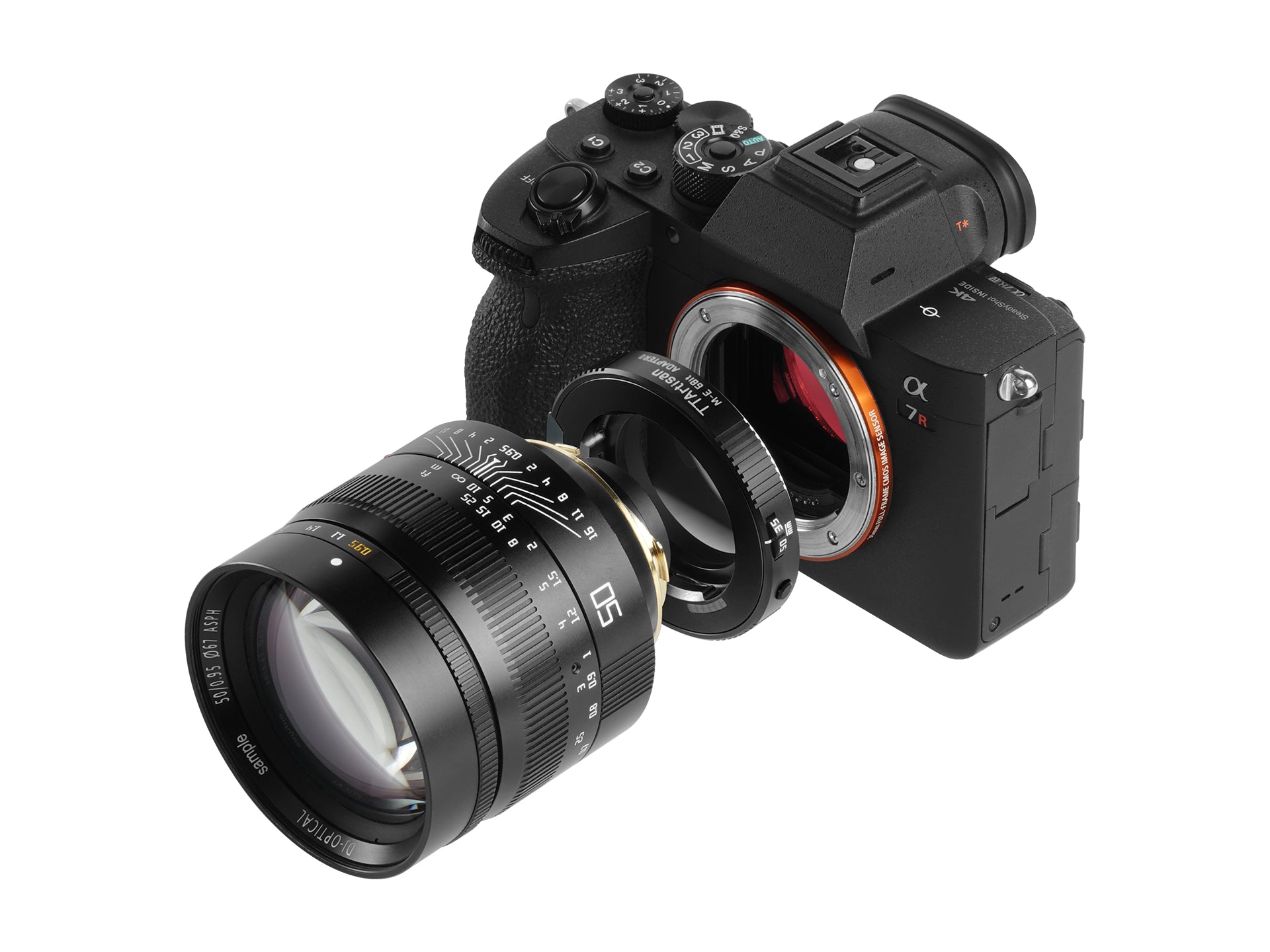

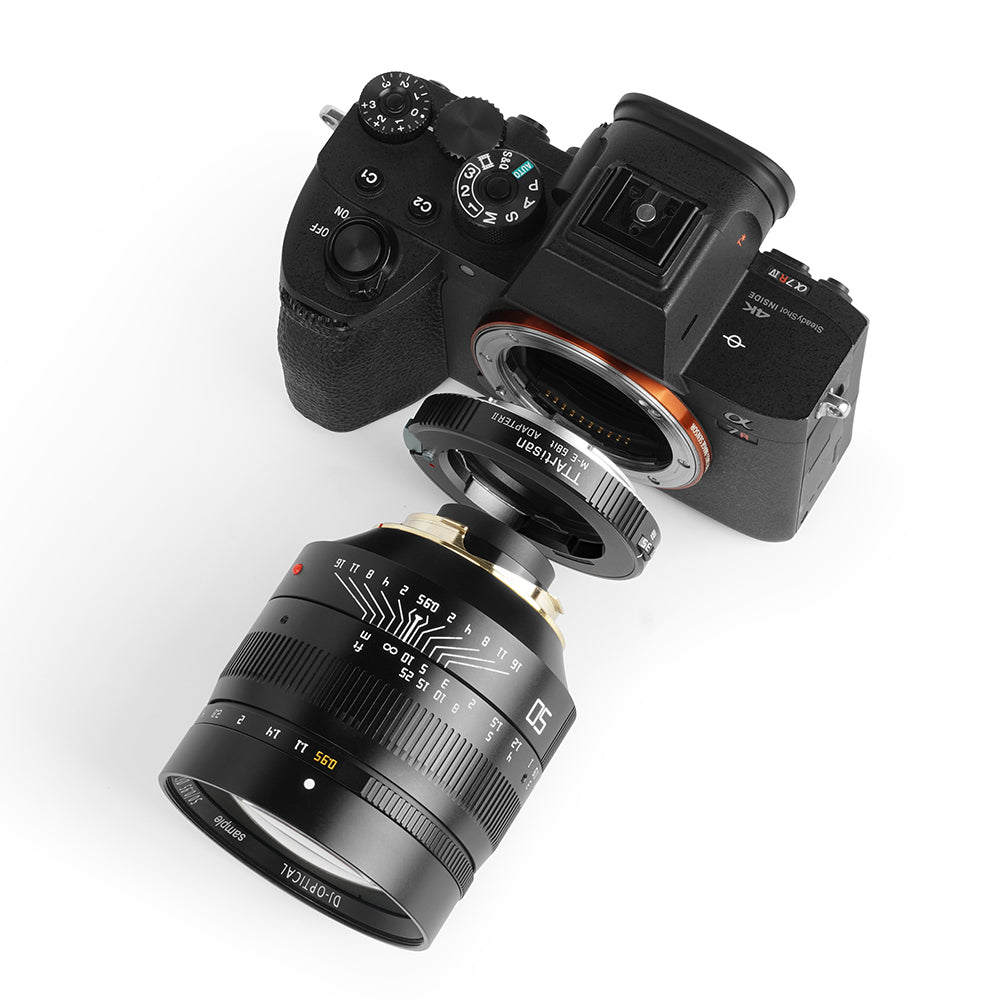

Used for M-mount lens, adapter E-mount camera:
Full Frame:
A7、A7ll(A7M2)、A7lll(A7M3)、A7R、A7Rll(A7RM2) 、A7Rlll(A7RM3) 、A7RlV(A7RM4)、A7S、A7SII(A7SM2) 、A7SIII(A7SM3)、A7C、A9、A9ll、A1、ZV-E1
APS-C Frame::
A5000、A5100、A6000、A6100、A6300、A6400、A6500、A6600、ZV-E 10、FX30
⚠The Exif recording function cannot be reached on the NEX series camera .
Two demands will be met with one adapter.
Mount adapting
√
Exif recording
√
ExposureTime
1/80
FNumber
1
FocalLength
50mm
ISO
100
(The picture shows part of the interception information)
What should a
High-quality Adapterlook like?

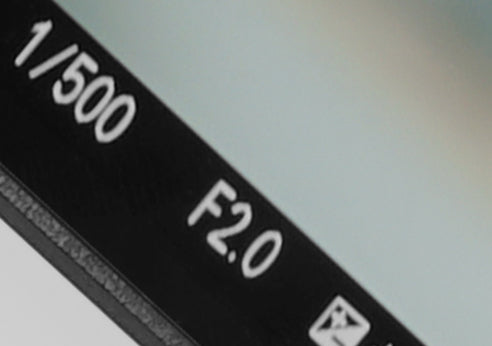

Aperture Data Recording
Using an M mount lens with a normal adapter ring on the Sony camera body, the changes of the aperture ring can not be captured by the camera system. In this case, the photo will lack the recording of the aperture data.

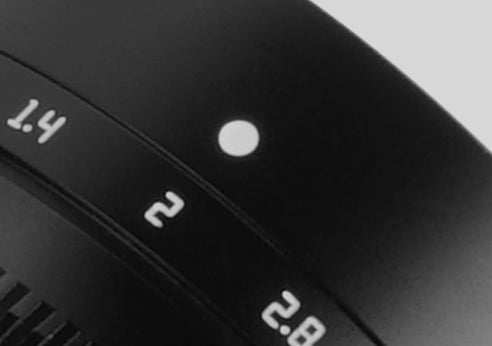

With the TTArtisan 6Bit adapter, the issue will be solved easily. you only need to set the aperture data the same as the aperture of the using lens, and the aperture information will be recorded in the photo Exif information.
1. The recordable aperture is subject to the camera.
For example, if the lens aperture is F0.95, but the camera does not have the F0.95 aperture, the F0.95 cannot be recorded in EXIF data.
2.The minimum aperture that can be recorded is F16.
Focal length ldentifying

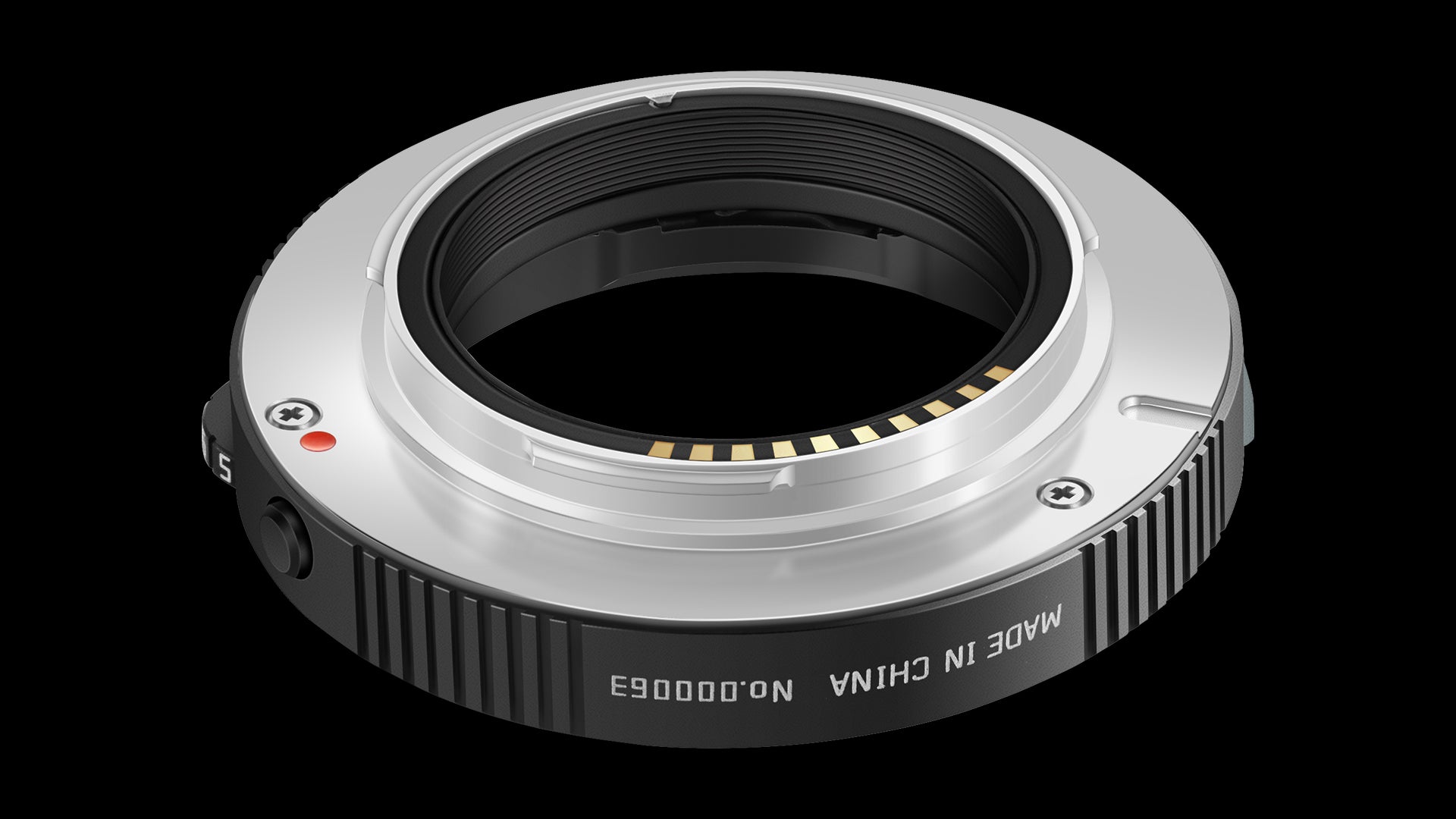

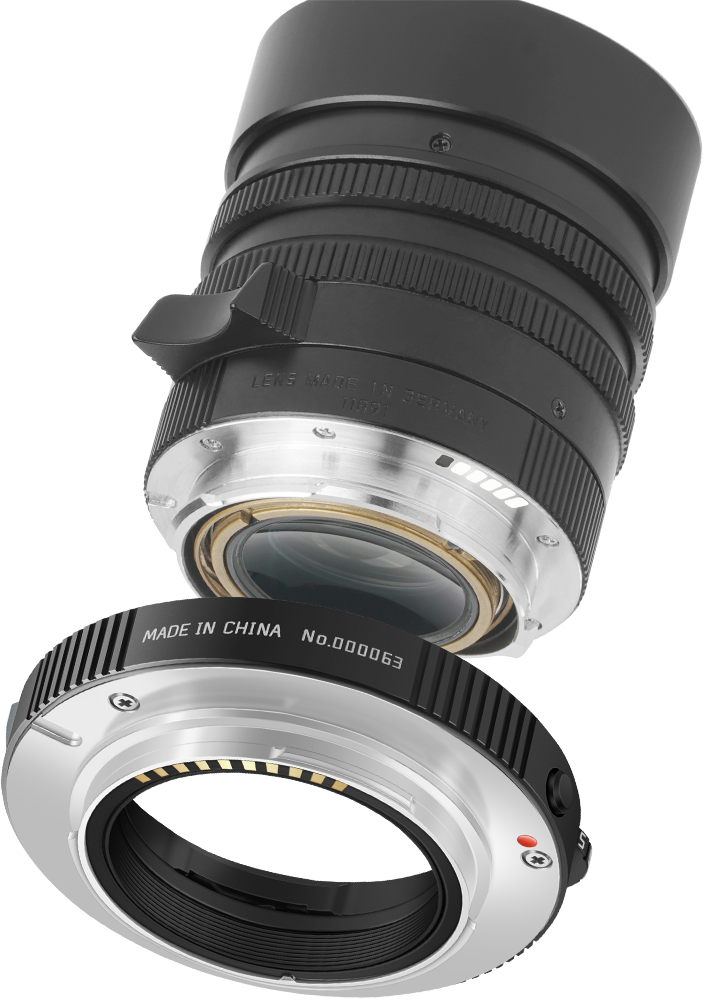

For lenses with 6Bit contacts, the adapter ring will automatically identify the lens focal length data and transmit it to the camera system.

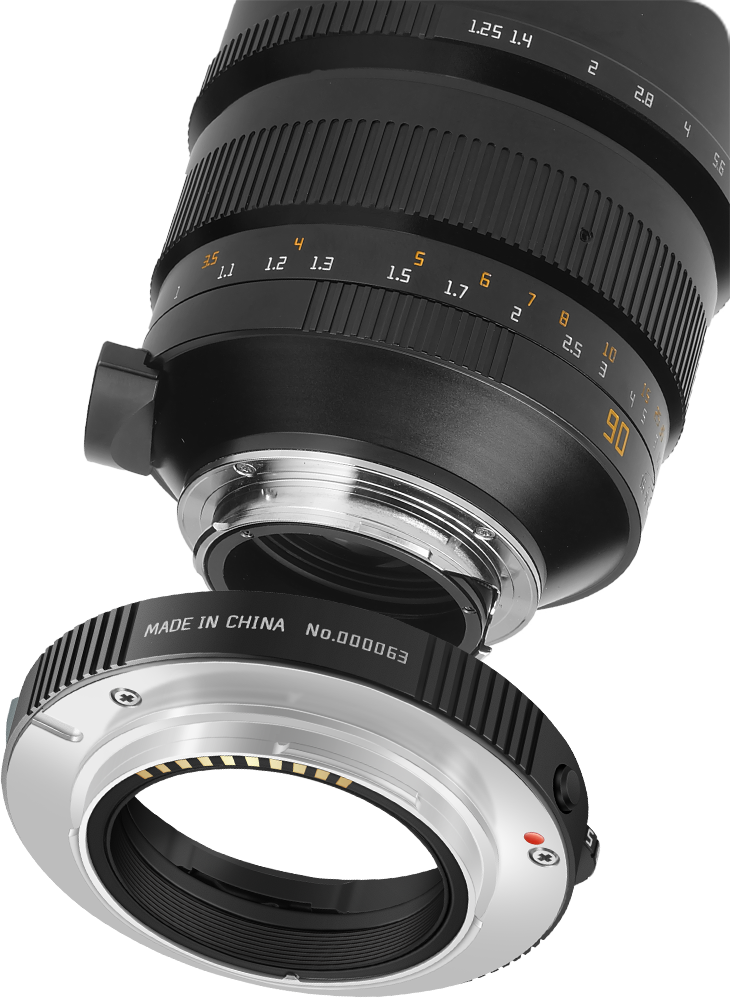

For lenses without 6Bit contacts, after manually setting the lens focal length date on the adapter ring, the camera can record the focal length information.
Selectable focal lengths:
135 90 75 50 35 28

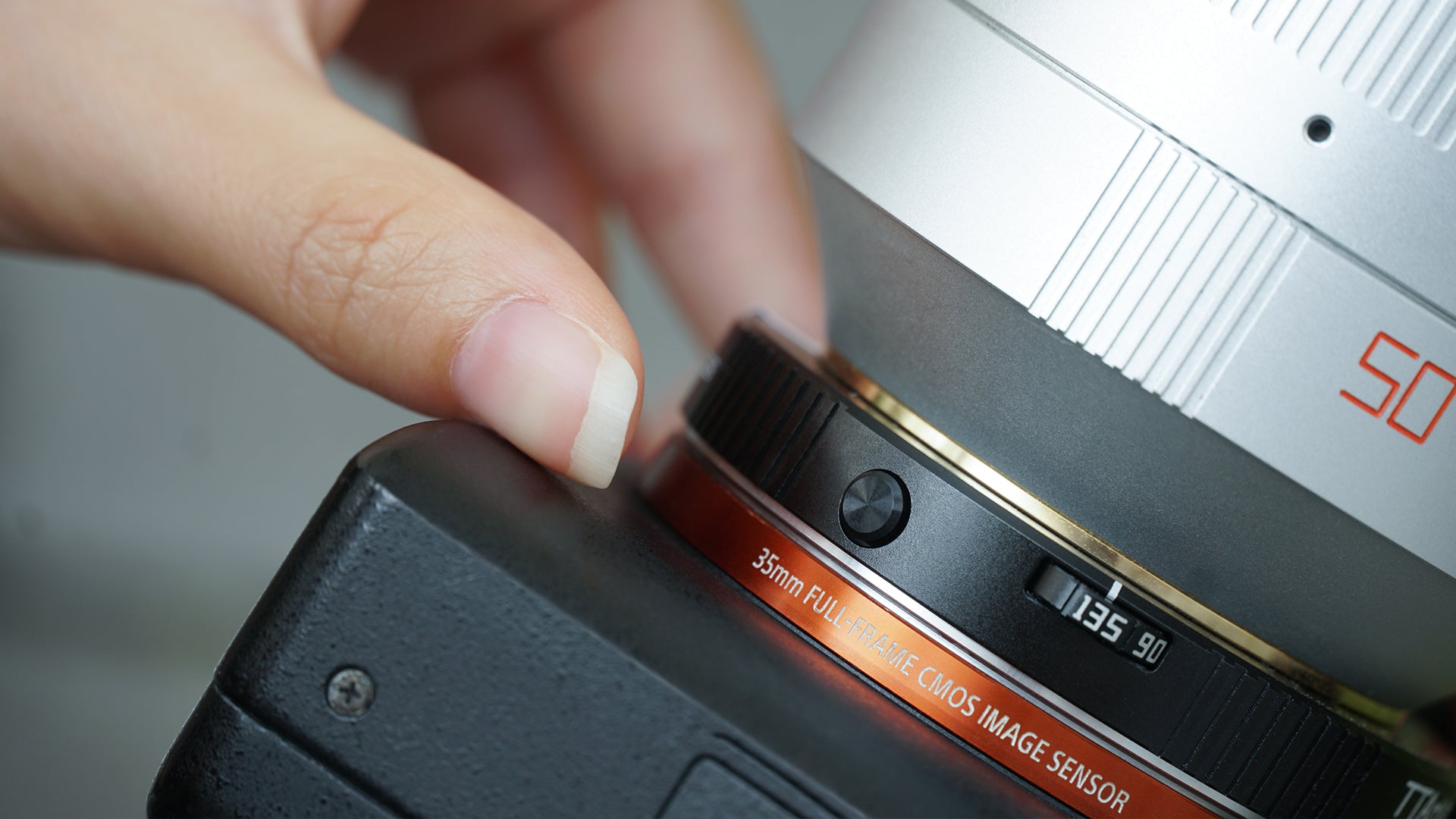

Button for Resetting the Focus Length
After changing lens or setting the focal length on the dial, press the reset button to record the focal length information of the new lens.
Camera anti-shake turn on

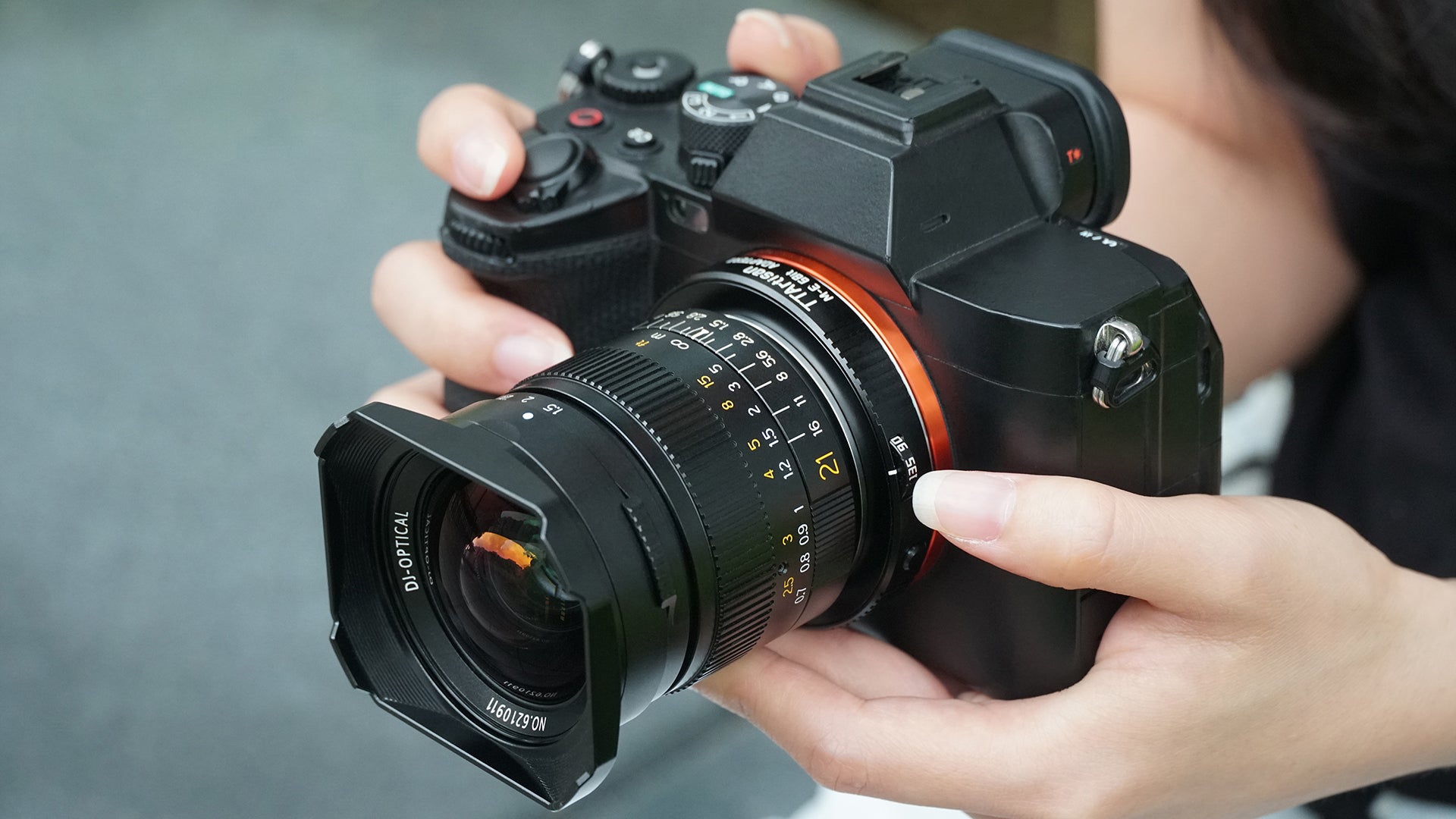

Even with the adapter ring, advanced features like the camera anti-shake can also be used as usual.

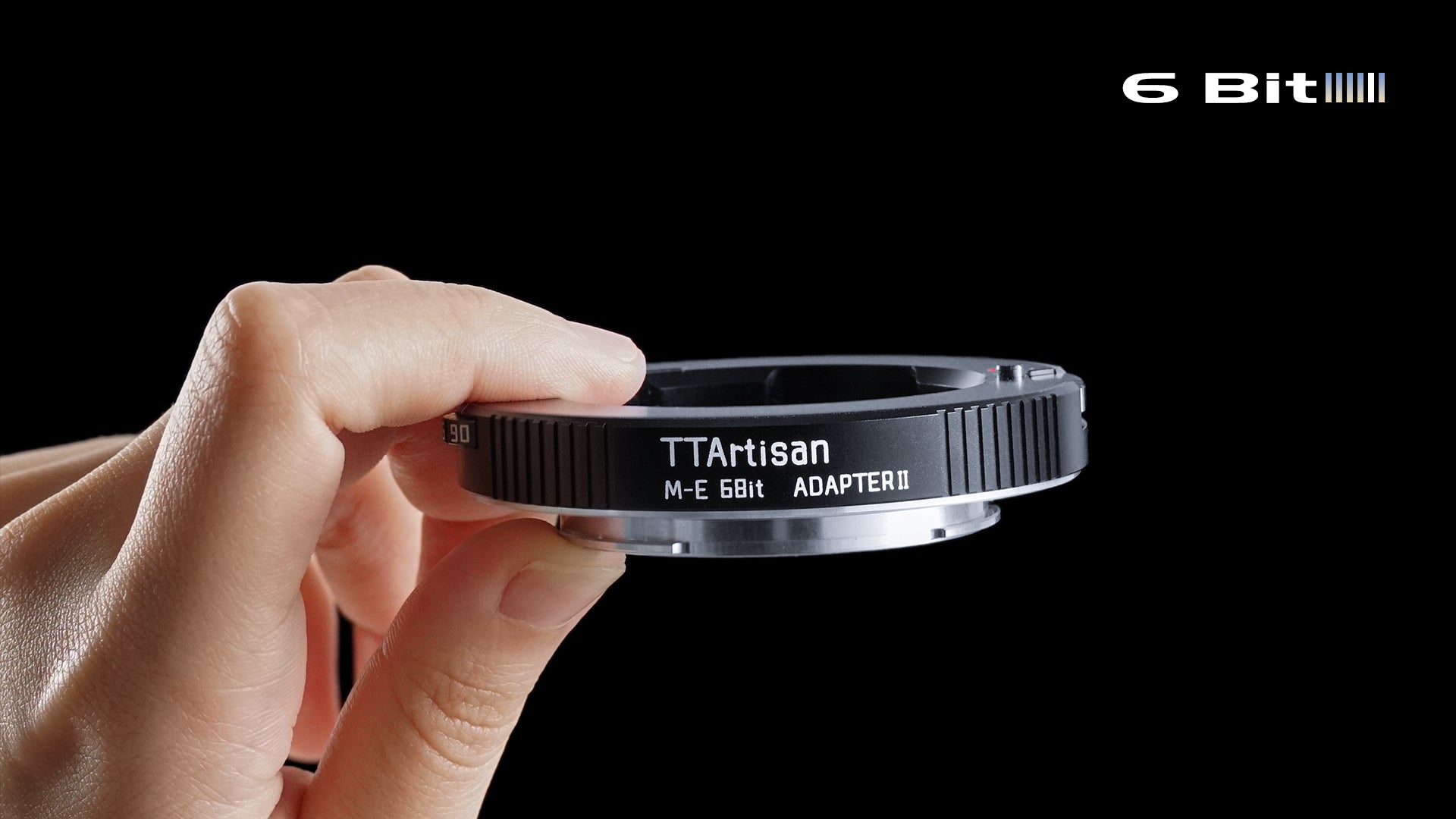

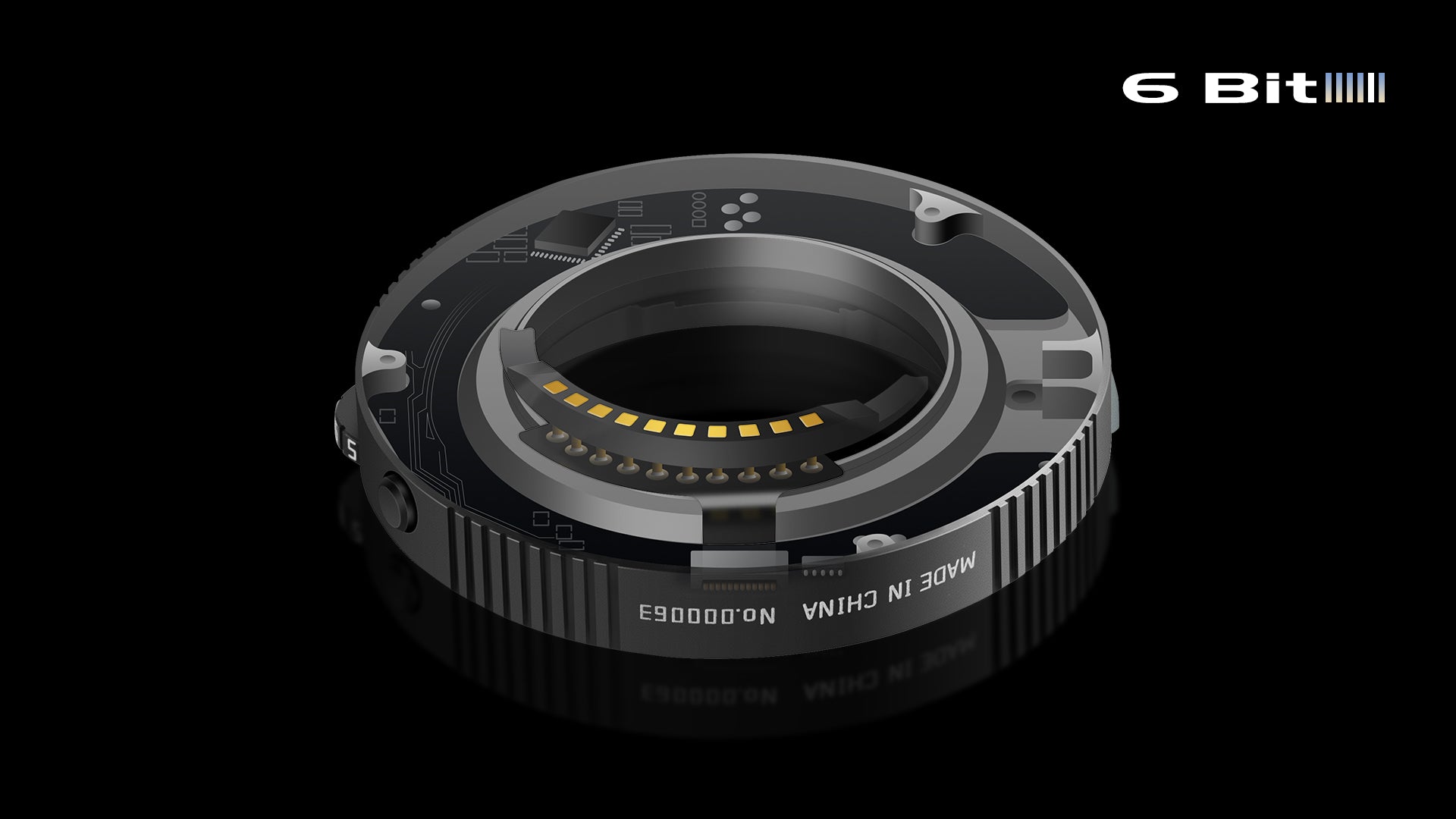

This adapter is made of high-grade aviation aluminum and weighs only 40 grams. At the same time, this adapter has excellent build quality
High Extinction Coating of Inner Wall
Extinction thread suppresses stray light and ensures image quality

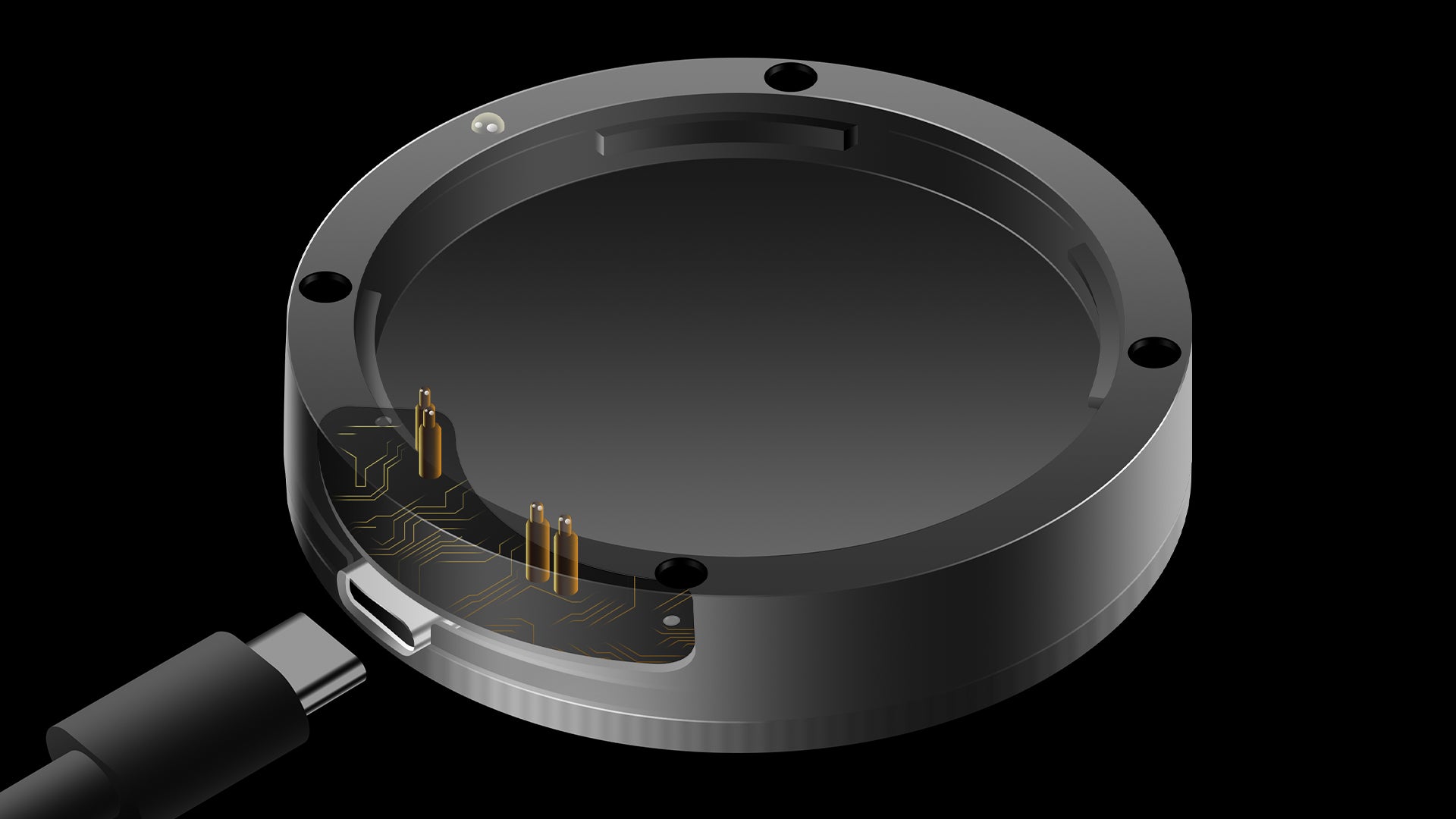

Type-C Rear Lens Cap
Compatible with future new cameras through firmware upgrade.
